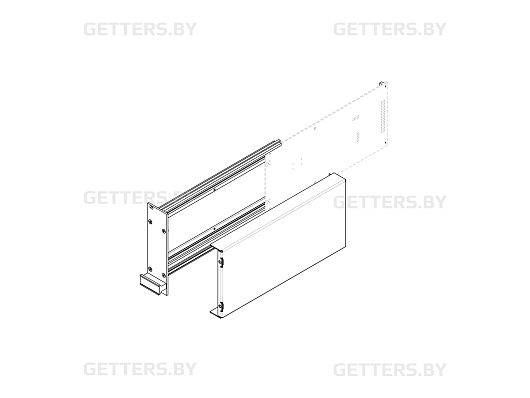

Composite Cassettes

  • Composite Cassettes

    • Shielding possibility
    • Possibility of adding stiffening ribs to the lateral panel
    • Installation of a single or several printed boards, single or several connectors
    • Removable upper covers for a swift assembly
    • Handles screwed on up front, simple attachment
    • Three cover variants (solid, perforated, perforated on guide rails)
    • Convenient fastening of printed boards within the cassette (only two screws per board are required)
    • Easy fine tuning because of a flat back cover (e.g. stamping). Back cover is removed without PCB-disassembly.

    catalog number:
    GTRS.32.001
    shipment:
    from 5 days
    Leave a message
    characteristics
    Product Type
    Cassette
    Product Line
    PRO frame-type insertion module
    Handle Type
    Trapezoid
    Rack Height
    3 U – 6 U
    Rack Width
    8 HP – 42 HP
    Depth
    167 mm, 227 mm
    Rear Panel Type
    Single Connector Cut-Out
    Cover Plate Type
    Cover Plate without perforation
    Material
    Aluminum
    Front Finish
    Anodized
    Rear Finish
    Anodized
